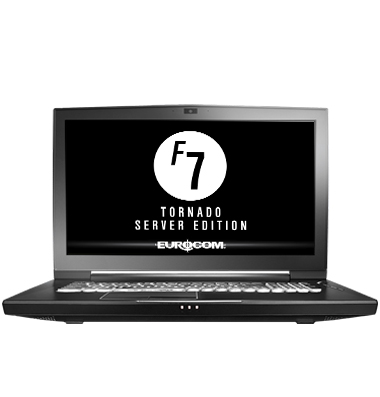

EUROCOM Tornado F7 Server Edition
17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160)

Launching Eurocom Tornado F7 Server Edition, heavy-duty Intel XEON based laptop with an all-in-one design with integrated display, keyboard and built-in UPS/battery pack, ensuring you have dedicated Server on the Go capability anytime, anywhere. EUROCOM Tornado F7 Server supports up to 22TB of storage with five physical drives in RAID 0/1/5/10 and up to 128GB of memory.

  • Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
  • Operating Systems: Microsoft Server 2016, VMware; Linux
  • Core Logic: Intel C246 Chipset
  • Processor: 6C/12T Intel XEON E series; and/or 8C/16T i9-9900K; LGA1151
  • Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets
  • Storage: up to 22TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3)
  • Redundancy and Performance: RAID 0/1/5/10 with 5 drives; RAID 0/1/5 with NVMe SSDs
  • Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset
  • I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN
  • Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password; optional "anti hacking" with webcam, mic and WLAN removed.
  • Heavy Duty Mechanical Design: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  •
    ConfigureSpecificationsImagesPrice ListComponentsDriversUpgradeUpgrade Price List
    Launch Date:November 11, 2018
    Special Feature(s):Mobile Server based on C246 chipset with XEON and i9 (8C/16T) support.
    Main Chipset:Intel C246 Chipset
    Processor:LGA1151 socket
    Xeon, i7 and i9 Processors
    up to Xeon E-2186G; 6C/12T
    up up i9 9900K; 8C/16T
    up to i7 9700K; 8C/8T
    Video / GPU:Modular; MXM 3.1
    NVIDIA GTX 1060
    NVIDIA Quadro P5200, P4200, P3200
    Built-in PC Camera:Built-in 2M FHD (without webcam optional)
    Display:17.3" FHD @120Hz or UHD (4K) @ 60Hz
    up to 4 active displays; up 4K @ 60Hz
    Memory:Four 260-pin SODIMM sockets
    DDR4-2133/2400/2666; up to 128GB
    ECC support with Xeon
    non-ECC support with i7/i9
    Total Storage:up to 5 physical drives:
    - 3x M.2 2280 SSD PCIe 4x (NVMe)
    - 2x 2.5in 9.5mm/7mm HDD/SSD/SHDD; SATA3
    - RAID 0/1/5 with 3x NVMe SSD
    - RAID 0/1/5/10 with 5 drives
    Optical Drive:External; USB based
    Card Reader:6-in-1 Push-Push Card Reader
    Realtek RTS5169-VEC-GR
    MMC/RSMMC SD/mini SD/SDHC/SDXC
    UHS-II
    Audio Architecture:High Definition Audio; Realtek ALC1220-VB2-CG
    S/PDIF Output
    Built in mic
    Built in two 2W speakers and subwoofer
    Sound Blaster X-FI MB5
    External 7.1CH output (headphone, mic, line-in and S/PDIF)
    ANSP 3D Sound Technology (headphone output)
    LAN/WLAN/Bluetooth:- 1GbE LAN on-board; Intel I219-LM; vPRO
    - WLAN / Bluetooth; PCIe; via M.2 slot (optional without WLAN / antenna removed)
    Security:Smartcard Reader (Realtek RTS5169-VEC-GR)
    TPM 2.0 (Infineon SLB9665TT2.0)
    Fingerprint (Synaptics TM-03368-001 Touchpad + F/P)
    BIOS Disk Encryption
    BIOS Disk Password
    Kensington Lock
    Internal cards / # of slots/Type:Four M.2 slots
    -1st: WLAN M.2 2230 Card with PCIe x2 and USB
    -2nd for SSD M.2 2280; SATA / PCIe x2/x4
    -3rd for SSD M.2 2280; SATA / PCie x2/x4
    -4th for SSD M.2 2280; SATA / PCie x2/x4
    I/O Ports:1 x Thunderbolt3 (USB 3.1 or DP 1.2 or HDMI 2.0); Intel Alpine Ridge JHL6340
    5 x USB 3.1
    1 x Mini Display Port 1.2
    1 x HDMI 2.0
    1 x Headphone out / SPDIF
    1 x Microphone-in
    1 x Line in
    1 x Line out
    1 x RJ-45 LAN
    1 x DC-in
    Internal Keyboard:White backlit keyboard
    TouchPad with multi-gesture and scrolling
    SYNAPTICS TM-03368-001(Touchpad with Fingerprint)
    AC Adapter:330W 100-240V 50-60Hz Auto-switching
    780W optional
    Battery:8cells Smart Li-Ion; 6250mAh; 90Wh
    Weight:4.14kg (9.1lbs)
    Dimensions WxDxH:428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
