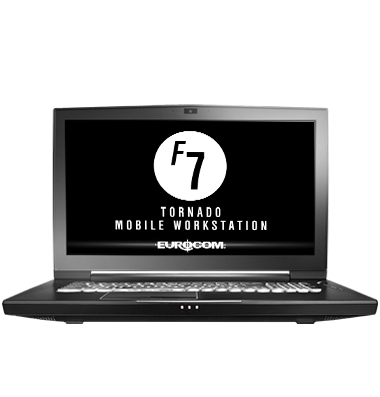

EUROCOM Tornado F7W
17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160)

Launching Eurocom Tornado F7, heavy-duty GPU and CPU upgradeable,Intel Xeon laptop with an all-in-one design with integrated display, keyboard and built-in UPS/battery pack, ensuring you have dedicated on-the-go capability anytime, anywhere. EUROCOM Tornado F7 supports up to 22TB of storage with five physical drives in RAID 0/1/5 and up to 128GB of memory.

  • Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
  • Operating Systems: Microsoft: Server 2016R2, Windows 10; Linux/Ubuntu
  • Core Logic: Intel C246 Chipset
  • Processor: 6C/12T Intel XEON E series; and 8C/16T i9 9900K; LGA1151
  • GPU Technology: GPU-upgradeable; MXM 3.1; Quadro: P5200, P4200 and P3200
  • Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets
  • Storage: up to 22TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3)
  • Redundancy and Performance: RAID 0/1/5
  • Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset
  • I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN
  • Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password
  • Mechanical Design Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  •
    ConfigureSpecificationsImagesBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversUpgradeUpgrade Price List
    Base Configuration
      System and Display
      - EUROCOM Tornado F7W
      Choose your LCD Display
      - 17.3-inch (43.9cm); 120Hz FHD 1920x1080; Matte; 94% NTSC; TN; 3ms; eDP; 40pin; N173HHE-G32
      - 17.3-inch (43.9cm); 60Hz; UHD; 3840x2160; Matte; IPS; eDP; 1000:1; Adobe 100% sRGB; 400nts; AUO B173ZAN01.0
      Display Calibration
      - Optional - choose from the options below:
      - Professional Display Calibration with .icc Profile Saved on USB Flash Key
      eXpansion Modules for 2-3 External Monitors
      - None - Choose from the options below
      - Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200)
      3D Devices for Precision Engineering
      - None, Choose from the options below:
      - 3Dconnexion CadMouse for Precision Engineering
      - 3Dconnexion SpaceMouse Enterprise for Precision Engineering
      GPU Technology
      - Single VGA support; Modular MXM 3.0; Upgradeable
      VGA / GPU Graphics Options
      - Quadro P3000; 6GB GDDR5; N17E-Q1; 1280 CUDA; MXM 3.1; 82x105mm; 75W; Win 10 Only
      - Quadro P3200; 6GB GDDR5; N18E-Q1; 1792 CUDA; MXM 3.1; 75W
      - Quadro P4000; 8GB GDDR5; N17E-Q3; 1792 CUDA; MXM 3.1B; 82x105mm; 100W; Win 10 only
      - Quadro P4200; 8GB GDDR5; N18E-Q3; 2304 CUDA; MXM 3.1; 115W
      - Quadro P5000; 16GB GDDR5; N17E-Q5; 2048 CUDA; MXM 3.1b; 82x105mm; 100W; Win 10 only
      - Quadro P5200; 16GB GDDR5; N18E-Q5; 2560 CUDA; MXM 3.1; 160W
      GPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      BIOS: Standard or Unlocked
      - Standard BIOS
      - UNLOCKED BIOS
      Processor / CPU
      - Xeon E-2176G; 6C/12T; 12MB L3; 3.7GHz (up to 4.7GHz); LGA1151; 14nm; 80W
      - Xeon E-2186G; 6C/12T; 12MB L3; 3.8GHz (up to 4.7GHz); LGA1151; 14nm; 95W
      - 3.2GHz (up to 4.6GHz) Intel Core i7-8700; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 65W
      - 3.7GHz (up to 4.7GHz) Intel Core i7-8700K; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
      - 4.0GHz (up to 5.0GHz) Intel Core i7-8086K; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
      - 3.6GHz (up to 4.9GHz) Intel Core i7-9700K; 8C/8T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
      - 3.6GHz (up to 5.0GHz) Intel Core i9-9900K; 8C/16T; 16MB L3; 14nm; Coffee Lake; LGA1151; 95W
      CPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Memory (RAM) Configuration
      - 16GB; 1x 16GB; DDR4; PC4-2133; ECC; 260-pin; Kingston; 1.2V; 1 SODIMM
      - 32GB; 2x 16GB; DDR4; PC4-2133; ECC; 260-pin; Kingston; 1.2V; 2 SODIMMs
      - 64GB; 4x 16GB; DDR4; PC4-2133; ECC; 260-pin; Kingston; 1.2V; 4 SODIMMs
      - 64GB; 2x 32GB; DDR4-2666; 16Gb DRAM; 10nm; Samsung; 260-pin; 1.2V; 2 SODIMMs
      - 128GB; 4x 32GB; DDR4-2666; 16Gb DRAM; 10nm; Samsung; 260-pin; 1.2V; 4 SODIMMs
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL
      - Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL
      - Microsoft Server 2016 Datacenter; OEM Edition; w/ 5 User CAL
      - Microsoft Server 2016 Datacenter; OEM Edition; w/ 25 User CAL
      Keyboard (Language)
      - US English; QWERTY; Backlit
      - Français / French; AZERTY; Backlit
      - Alemán / German; QWERTZ; Backlit
      - Español / Spanish; QWERTY; Backlit
      - Nordic; QWERTY; Backlit
      - UK English; QWERTY; Backlit
      Office/Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2016 Home and Student Edition; OEM; MLK; US/Canada version
      - Microsoft Office 2016 Home and Business Edition; OEM; MLK; US/Canada version
      RAID Options: M.2 PCIe/M.2 SATA/mSATA Storage
      - None - Choose from the options below:
      - RAID 0 - for maximum performance; 2x M.2 PCIe x2 x4 or 2x M.2 SATA are required; NVMe SSD are RAIDable
      - RAID 1 - for redundancy; 2x M.2 PCIe x2 x4 or 2x M.2 SATA are required; NVMe SSD are RAIDable
      - RAID 5 - for maximum performance; 3x M.2 PCIe x2 x4 or 3x M.2 SATA are required; NVMe SSD are RAIDable
      Internal M.2 SSD Storage
      - Choose your SSD M.2 type 2280 (80x22nm) from the options below:
      - 32GB, Intel Optane Memory; R/W: 1350 / 290 MB/s; PCIe NVMe 3.0 x2
      - 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 500GB; M.2 SAMSUNG 850 EVO; SSD; SATA3; R/W: 540/520 MB/s
      - 512GB; M.2 Micron 1100; SSD; SATA3; R/W: 530/500 MB/s
      - 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB; M.2 MICRON 1100; SSD; SATA3; R/W: 530/500 MB/s
      - 1TB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s
      - 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      Internal M.2 SSD Storage
      - Choose your SSD M.2 type 2280 (80x22mm) from the options below:
      - 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 512GB; M.2 Micron 1100; SSD; SATA3; R/W: 560/510 MB/s
      - 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s
      - 1TB; M.2 SAMSUNG 970 Pro; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2700 MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 1TB; M.2 MICRON 1100; SSD; SATA3; R/W: 530/500 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s
      Internal M.2 SSD Storage; slot #3
      - Choose your SSD M.2 type 2280 from the options below:
      - 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB; M.2 MICRON 1100; SSD; SATA3; R/W: 530/500 MB/s
      - 1TB; M.2 SAMSUNG 970 Pro; SSD NVMe; R/W: 3500/2700 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe; SSD; R/W: 3500/2500 MB/s
      RAID Options: HDD/SSD Storage
      - None - Choose from the options below
      - RAID 0 setup - for maximum performance; minimum 2 physical drives are required
      - RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required
      - Multiple Partitions with One O/S - please specify size of each partition
      - Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S
      1st Drive: HDD, SSD or SSHD
      - 1TB (1000GB); 7200rpm; SATA3; 32MB; WD BLACK 10JPLX; 9.5mm
      - 1TB; HDD; SATA3 6Gb/s; 5400rpm; 2.5in; 7mm; Seagate Barracuda ST1000LM048
      - 1.5TB (1500GB); 5400rpm; SATA3 (6Gb/s); 32MB cache; Hitachi Travelstar 5K1500; 9.5mm
      - 2TB; HYBRID SSHD; SEAGATE FIRECUDA ST2000LX001; 2.5"; 7mm; 128MB cache; SATA3
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 256GB SSD; MLC; Samsung 850 Pro; SATA3 6Gb/s; Read/Write (MB/s): 550/520; 7mm
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 512GB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch
      - 1TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s
      - 1TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s
      - 4TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm
      - *** Without Hard Drive; with HDD bracket included ***
      2nd Drive: HDD, SSD or SSHD
      - Choose your 2nd HDD/SSD/SHHD from the options below:
      - 1TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 1TB; HDD; SATA3 6Gb/s; 5400rpm; 2.5in; 7mm; Seagate Barracuda ST1000LM048
      - 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch
      - 1TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s
      - 1TB (1000GB); 7200rpm; SATA3; 32MB; WD BLACK 10JPLX; 9.5mm
      - 1.5TB (1500GB); 5400rpm; SATA3 (6Gb/s); 32MB cache; Hitachi Travelstar 5K1500; 9.5mm
      - 2TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 4TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - 24x DVD-RW; External; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface
      Built-in Smart Card Reader
      - Built-in Smart Card Reader
      Biometric Device
      - Built-in Fingerprint Reader
      Embedded Security Chip
      - Embedded TPM 2.0 Security Chip for Data Encryption
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      Wireless LAN
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535; ExtremeRange™ Technology; M.2 2230
      - 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps
      Built-in Web Camera
      - 2.0 Megapixels; Webcam; Built-in
      Thunderbolt Port
      - 1x Thunderbolt 3 (via USB 3.1 type C)
      Standard Battery (internal)
      - 8-cells Smart Li-lon Battery
      Standard AC Adapter
      - 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Carrying Case
      - None - Choose from the options below
      - TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650
      - EVERKI TITAN; XXL Backpack for up to 18.4-inch laptops; EKP120
      - 17.3-inch Sport Backpack; Black; Targus Voyager TSB045CA
      - 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case
      - 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Extra Thermal Pads for M.2 SSD
      - None - Choose from the options below:
      - Set of M.2 SSD Thermal pads 45x19x8mm for Tornado F5/F7
      Choose Extra Battery
      - None - Choose from the options below
      - 8-cells Smart Li-Ion Battery
      Extra AC Adapter
      - None - Choose from the options below
      - 330W AC Adapter; Auto-switching; 100-240V
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 2 Extra; US/CANADA
      - 1 Extra; UK
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra, EUROPE
      - 2 Extra; UK
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro - Small; 12.6x8.2x0.5in (active 6.2x3.9in); Pen Tablet; 5080lpi
      - Wacom Intuos Pro - Medium; 13.2x8.5x0.3in (active 8.7x5.8in); Pen Tablet; 5080lpi
      - Wacom Intuos Pro - Large; 16.8x11.2x0.3in (active 12.1x8.4in); Pen Tablet; 5080lpi

    Accessories
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      - USB 3.0 Universal Docking Station; Targus DOCK160USZ; 2x DP 1.2; 2x HDMI 2.0; 1GbE LAN; 4x USB 3.0; 1x USB 3.1 Gen1 (C); Audio in/out; Lock slot
      Car Adapters and Inverters
      - None - Choose from the options below
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      DisplayPort Adapters, Cables and Converters
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP
      - 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10
      - 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN
      Security Cables and Security Devices
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
