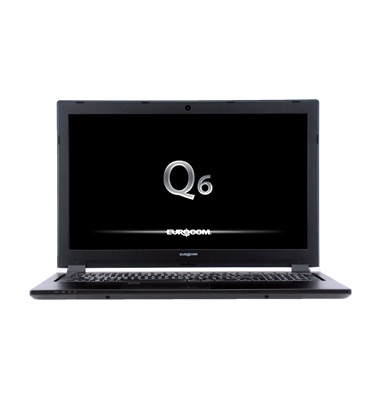

EUROCOM Q6

Configure

Specs

Upgrade

Components

Images

Brochure

Benchmarks

Reviews

Manual

Drivers

15.6in UHD 60Hz or FHD 60Hz, 120Hz, 144Hz Platform: Coffee Lake Intel HM370; NVIDIA MAX-Q design 18.6mm thin Powerful Processor: Intel Core i7-8750H (6cores/12threads); on-board GPU Technology: NVIDIA GeForce GTX 1070 (8GB DDR5); on-board; Microsoft Hybrid Graphics mode Display Technology: supports total 4 active displays; supports NVIDIA Surround View via HDMI x1 and miniDP x2. Robust Design: Titanium Black Aluminum Alloy (AL-5052): back cover, top case and bottom case. Cooling: High performance, high quality copper GPU and CPU heatsinks to keep your system running cool. Memory: Two 260-pin SODIMM sockets; DDR4-2400/2666/3000; 1.2V; up to 64GB Storage: up to 10TB of storage with 2 physical drives: 1x M.2 2280 SSD SATA3 / PCIe x4 and 1x HDD/SSD SATA3 6Gb/s and RAID 0/1 Communications: 1GbE LAN, WLAN (M.2) and optional LTE/4G M.2 module (built-in antenna and SIM socket) Sound System: SoundBlasterX Pro Gaming 360; ALC1220 Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push Keyboard and Touchpad: Backlit multi-colour full size 7-colour keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key Loaded with Ports: 2x USB 3.1c; 3x USB 3.0; 2x mini Display Port 1.3; HDMI 2.0 output; 2-in-1 Audio Jack (Headphone + S/PDIF output); Microphone-in; RJ-45 LAN; DC-in Operating Systems: Windows 10 Security: Kensington Lock, Fingerprint and Embedded TPM 2.0 Encryption Battery: 4cells Lithium Polymer; 55WH; up to 300 minutes in UMA mode Weight: 1.9kg / 4.2lbs Dimensions: WxDxH: 380x249x18.6mm / 15.2x9.96x0.74-inch

Base Configuration   System and Display   EUROCOM Q6   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $71]   Choose your LCD Display   15.6in (39.6cm); 60Hz FHD 1920x1080; Matte; IPS; 700:1; NTSC 72%; 30pin; LG LP156WF6-SPP2 15.6in (39.6cm); 144Hz FHD 1920x1080; Matte; IPS; NTSC 72%; 300 cd/m2; eDP; 40pin; LG LP156WFG-SPF2 [add $173] 15.6in (39.6cm); UHD; 60Hz; Matte; IPS; 25ms; 800:1; NTSC 72%; 300 cd/m2; eDP 40pin; LP156UD1-SPB1 [add $191]   Processor / CPU   2.20 GHz (up to 3.9) Intel Mobile Core i7-8750H; on-board/SMT; 6C/12T; 9MB L3; 14nm; 45W 2.30 GHz (up to 4.0) Intel Mobile Core i5-8300H; on-board/SMT; 4C/8T; 8MB L3; 14nm; 45W [sub $188]   Memory Configuration   16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs 16GB; 1x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 1 SODIMM [add $8] 16GB; 2x 8GB; DDR4; 2666Hz; CL15; 260-pin;1.2V; Kingston HyperX; 2 SODIMMs [add $8] 16GB; 2x 8GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs [add $24] 16GB; 1x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 1 SODIMM [add $24] 32GB; 2x 16GB; DDR4; 2666Hz; CL15; 260-pin;1.2V; Kingston HyperX; 2 SODIMMs [add $328] 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs [add $328] 32GB; 2x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs [add $360] 64GB; 2x 32GB; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs; Micron/Crucial/Samsung [add $840]   eXpansion Modules for 2-3 External Monitors   None - Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [add $399]   VGA / GPU Graphics Options   8GB GDDR5; NVIDIA GTX 1070 (N17E-G2); 2048 CUDA; Pascal (16nm); on-board; 100W   Thermal Paste: GPU Heatsink   Standard Thermal Paste IC Diamond 7 Carat Thermal Compound for Maximum Performance [add $55] Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $79]   Thermal Paste; CPU Heatsink   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $24]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $159] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $299] Linux Ubuntu installed; LTS 18.04; USB key [add $156]   Business Productivity Software   None - Choose from the options below Microsoft Office 2024 Home and Student Edition; OEM; MLK; US/Canada [add $143] Microsoft Office 2024 Home and Business Edition; OEM; MLK; US/Canada [add $279]   Keyboard (Language)   US English; QWERTY; Backlit UK English; QWERTY; Backlit [add $80] Alemán / German; QWERTZ; Backlit [add $80] Español / Spanish; QWERTY; Backlit [add $80] Français / French; AZERTY; Backlit [add $80] Italiana / Italian; QWERTY; Backlit [add $80] Norske / Norwegian; QWERTY; Backlit [add $80] Português / Portugese; QWERTY; Backlit [add $80] Svenska / Swedish; QWERTY; Backlit [add $80] Swiss; QWERTZ; Backlit [add $80]   Internal PCIe NVMe M.2 SSD   Choose your SSD M.2 type 2280 (80x22nm) from the options below: 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $135] 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $135] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $319] 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s [add $399] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $263] 1TB SSD; SAMSUNG 990 Pro or equivalent depending on availability; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [add $879] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $559] 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO or equivalent depending on availability [add $719] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $999]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance [add $60] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $60]   1st Drive: HDD, SSD or SSHD   1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $136] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm [add $32] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [add $96] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $299] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [add $256] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $539] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [add $379] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [add $379] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1099] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $779] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1579] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3819] *** Without Hard Drive; with HDD bracket included *** [sub $54]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [add $319] External; DVD-RW Burner; USB 2.0 [add $119]   Internal Card Reader   6-in-1 Card Reader; SD/MS/MMC/SM/CF/MicroDrive   Security: Biometric Device   Built-in Fingerprint Reader   Embedded Security Chip   Embedded TPM 2.0 Security Chip for Data Encryption   Security Cables / Devices:   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $39] Targus Defcon 1 Alarm Device PPA400C [add $39]   Wireless LAN   2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $79] External; USB 2.0; Hauppauge HVR-955Q; ATSC/NTSC/QAM TV Tuner; w/ Remote [add $151]   Mobile Broadband Ready (M.2 for LTE/3G/4G Module + antennas + SIM slot)   Optional; Choose the list below: 4G LTE Mobile Broadband; M.2; Huawei ME906S; 42x30mm; installed [add $287]   Gaming Accessories   None - Choose from the options below Gaming Mouse Logitech G600 MMO Gaming Mouse; 20 Programmable Buttons [add $159]   Built-in Web Camera   2.0 Megapixels; FHD   Choose Extra Battery   None - Choose from the options below 4-cells Smart-Lion Battery [add $132]   Standard AC Adapter   180W Auto-Switching; 100V-250V AC Adapter 200W AC Adapter; 100-240V; Auto-Switching (Worldwide) [add $13]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Extra Power Cord   None - Choose from the options below 1 Extra; USA/CANADA [add $15] 2 Extra; US/CANADA [add $30] 1 Extra; AUSTRALIA [add $15] 2 Extra; AUSTRALIA [add $30] 2 Extra, EUROPE [add $30] 1 Extra; EUROPE [add $15] 1 Extra; SOUTH AFRICA [add $15] 2 Extra; SOUTH AFRICA [add $30] 2 Extra; UK [add $30] 1 Extra; UK [add $15]   Choose Extra AC Adapter   None - Choose from the options below 180W; Auto-Switching 100-250V [add $103] 200W; Auto-switching 100V-250V; Worldwide [add $116]   Carrying Case / Backpack   None - Choose from the options below 18.4in EVERKI ContemPRO; XXL Backpack; EKP117B; 530x420x220mm [add $239] 16in Targus Trademark Notepac Plus Case; Black (CTM400); internal: 14.5x2x11.75in [add $103] 16in Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TARGUS TCG650 [add $95] 18in (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [add $151] 17.3in Sport Backpack; Black; Targus Voyager TSB953GL [add $135]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $220] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $319] Options   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [add $319] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [add $399] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [add $559] Accessories   External Hard Drive for Data Backup or Network Storage (NAS)   None - Choose from the options below 2TB Buffalo LinkStation 210; 1-Bay NAS Network Attached Storage [add $396] 4TB; BUFFALO LinkStation 720 4TB 2-Bay; Network Attached Storage/NAS Storage/Network Storage/Media Server/File Server [add $636]   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $63]   Car Adapters and Inverters   None - Choose from the options below 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $95]   Cables, Converters and Adapters   None - Choose from the options below: 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [add $159] 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition [add $23] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $55] 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition [add $46] 3pcs of DisplayPort to DVi-I Converter Cables for Matrox TH2G DP Edition [add $70]   Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $183] DP to DVI Video Adapter M/M; Startech DP2DVIDAP [add $39]
