EUROCOM 780W AC Adapter
The World's Most Powerful 780W External AC/DC Adapter.
Great for High end Laptops, Small Form Factor PCs, Industrial PCs and Servers.

Physical Characteristics
  • 12.8” / 325mm Length x 4.3” / 110mm Width x 1.5” / 40mm Height
  • 72.9” / 1.8m DC Cable Length
  • Total weight: 3.05 lbs / 1.38 kg

    Vital Specifications
  • Rated Output Power: 780Watts

    Input Voltage & Frequency
  • Input voltage range: 90VAC to 264VAC
  • Input Frequency 63Hz 50/60Hz 47Hz

    Input Current
  • The maximum input current is 10A at AC Input 100Vac/60Hz.

    Inrush Current
  • The inrush current will not exceed 100A at 230VAC/63Hz AC input for a cold start at 25℃.
    Power Factor
  • The Power supply power factor at full load operation shall be more than 0.9 at 230VAC input.

  • The efficiency (watts out / watts in) higher than 90% typically while measuring at nominal line and maximum load.

    Output Requirements - Static Load
  • Output Voltage: 20Vdc
  • Minimum Load: 0A
  • Maximum Load: 39A
  • Peak Load 45A (duration Time 25ms)
  • Line Regulation 2%
  • Load Regulation: ±5%
  • Voltage Accuracy: Min 19V Max 21V
  • Ripple & Noise(*) 200mVp-p
    CustomizeImagesVideosBrochureReviewsPrice ListComponentsFAQs
    Base Configuration

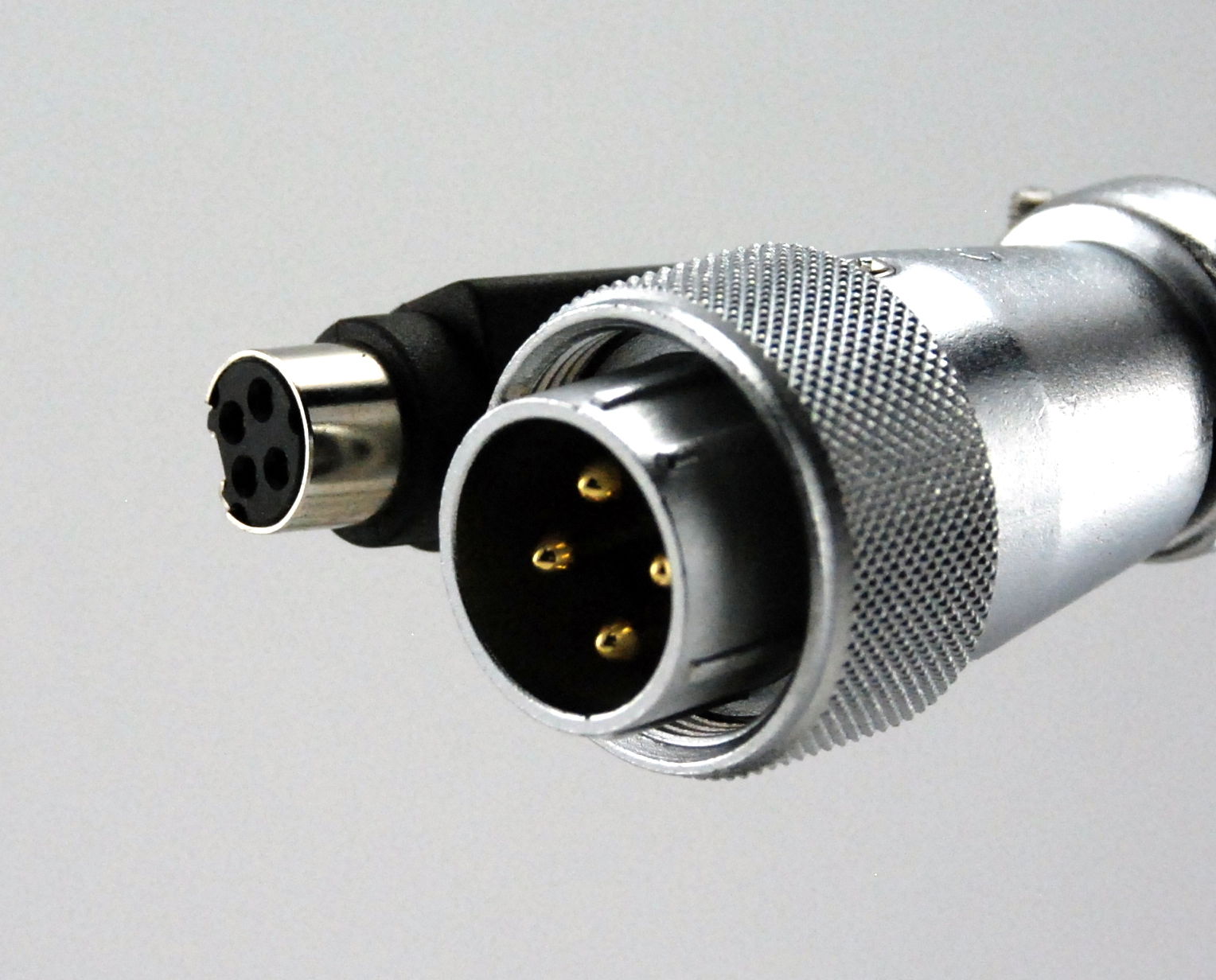

      DC Cable for 780W AC Adapter
