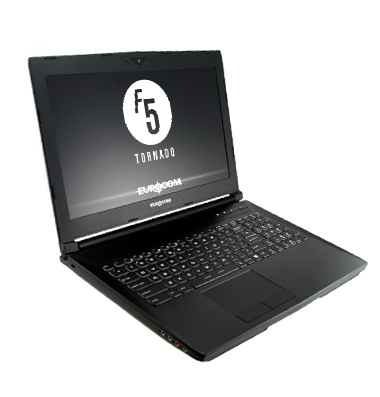

EUROCOM Tornado F5
15.6-inch FHD 1920-by-1080 pixels or 4K UltraHD 3840-by-2160 pixels; eDP

  • Fully upgradeable, fully customizable - a True Workhorse
    Turn the EUROCOM Tornado F5 into the laptop of your dreams by selecting the components you want to fit inside this highly capable, yet very mobile chassis.

  • Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  • Chipset: High Performance Intel Z170 Express Chipset
  • Processor: Socket based; LGA1151; up to 91W TDP; choice of Core i7, i5, i3 up to 6700K/7700K.
  • VGA Technology: upgradeable MXM 3.0; NVIDIA GeForce: GTX 1080, 1070, 1060, 980M, 970M or 965M; Quadro: M1000M, M3000M, M4000M or M5000M; up to 150W TDP; discrete GPU only (no Optimus)
  • Memory: Four 260-pin SODIMM sockets; DDR4-2133/2400/3000/3200; up to 64GB
  • Storage: up to 3 physical drives: 2x M.2 2280 PCIe x2/x4 or SATA SSD and 1x HDD/SSD (9.5mm) SATA3 6Gb/s; RAID 0/1 with 2x NVMe SSDs.
  • Card Reader: 6-in-1: UHS-II interface; MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Anti-ghosting backlit multi-colour 7-colour keyboard with seperate numeric keypad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3x USB 3.0; 1x USB 3.1 type C (Thunderbolt 3); 1x miniDP 1.2; 1x HDMI 2.0; 1x Headphone; 1x Microphone-in; 1x S/PDIF (digital); 1x Line-in; 1x RJ-45 LAN; 1x DC-in
  • Audio: High Definition Audio; S/PDIF Digital Output; Built in microphone; Built in two 2W speakers; Sound Blaster X-FI MB3; External 7.1CH output (headphone, mic, line-in and S/PDIF).
  • Display Support: Supports up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz
  • Battery: 8cells; 14.4V 5225mAh/75.24Wh Li-Ion; up to 130 minutes
  • Weight: 2.92kg / 6.45 lbs w/ battery
  • Dimensions: 390x266x39.8mm / 15.6x10.64x1.59-inch
  •
    ConfigureSpecificationsImagesVideosBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    Name Date Created Created By
    EUROCOM Tornado F5 w Pascal NVIDIA GeForce GTX 1070 graphics Aug 26, 2016Eurocom
    EUROCOM Tornado F5 - GPU Replacement on a Notebook... Is it Possible?Oct 28, 2016Hardware Canucks
    64 GB DDR4 2400 Memory upgrade in EUROCOM Tornado F5 Gaming Laptop Nov 16, 2016Eurocom
    Installing NVIDIA GeForce GTX 1080 and Intel Core I7 7700k in EUROCOM Tornado F5 Jan 19, 2017Eurocom
    EUROCOM Tornado F5 - 120 Hz 15.6" FHD LCD UpgradeMar 02, 2017Eurocom
    Mr Fox Tornado F5 Quickie Review Video Jan 24, 2017Mr Fox
    EXPOSED: EUROCOM Tornado F5 Motherboard Removal Feb 08, 2017Mr Fox
    EUROCOM Tornado F5 15.6Feb 08, 2017Mr Fox
    Eurocom Tornado Gaming Laptop Blogger ReviewMar 20, 2017BestBuy
