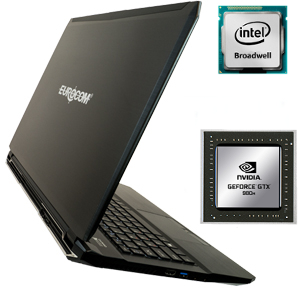

EUROCOM M5 Pro R2
Beautiful 15.6-inch 4K QFHD IPS 3840-by-2160, 3K WQHD+ IPS 2880-by-1620 or 2K FHD IPS 1920-by-1080 pixels; 60Hz; eDP interface; LED Backlit; Retina

  • Processor: on-board; Intel Core i7-570HQ (Broadwell); 6M Cache
  • VGA Technology: on-board; NVIDIA GeForce GTX 980M (4GB DDR5) or GTX 970M (3GB DDR5)
  • Mechanical (Frame): Aluminium Alloy (back cover and bottom case) combined with Heavy Duty ABS Plastic (front cover and top case)
  • Cooling: High performance, high quality copper VGA and CPU heatsinks to keep your system running cool.
  • Memory: Four 204-pin SODIMM sockets; DDR3L-1600 or 1866; 1.35V; up to 32GB
  • Storage: up to 5TB of storage with 4 physical drives: 2x M.2 2280 SSD SATA3 6Gb/s (or 1x M.2 2280 PCIe 2x/4x SSD and 1x M.2 SATA3 SSD) and 2x HDD/SSD SATA3 6Gb/s and RAID 0/1
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Backlit full size keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3 x USB 3.0 (1x powered USB port, AC/DC); 1 x eSATA/USB3.0 Combo port; 2 x mini Display Port 1.2 (up to 3840x2160 @60Hz); 1 x HDMI output (up to 4096x2304 @24Hz); 1 x Headphone; 1 x Microphone-in; 1 x S/PDIF (digital); 1 x RJ-45 LAN; 1 x DC-in
  • Display Support: Supports up to 3 active internal and/or external displays
  • Operating Systems: Windows 10, 8.1 and 7; Linux Ubuntu
  • Security: Kensington Lock and Embedded TPM 2.0
  • Battery: 4cells Polymer; 60WH; up to 200 minutes in UMA mode
  • Weight: M5 Pro (15.6") 2.6kg / 5.72lbs; M7 Pro (17.3") 3.2kg / 7.04lbs w/ battery
  • Dimensions: WxDxH M5 Pro R2 (GTX 970M): 385x271x25mm / 15.16x10.66x0.99-inch; M5 Pro R2 (GTX 980M): 385x271x28.8mm / 15.16x10.66x1.13-inch
  • ConfigureSpecificationsImagesVideosBrochurePrice ListComponentsUser ManualFAQsUpgradeUpgrade Price List
    EUROCOM M5 Pro First look Unboxing - 970M / 980M NVIDIA GeForce GTX

    Date Created: Nov 07, 2014
    Created By: Eurocom
