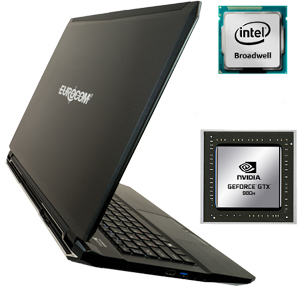

EUROCOM M5 Pro R2
Beautiful 15.6-inch 4K QFHD IPS 3840-by-2160, 3K WQHD+ IPS 2880-by-1620 or 2K FHD IPS 1920-by-1080 pixels; 60Hz; eDP interface; LED Backlit; Retina

  • Processor: on-board; Intel Core i7-570HQ (Broadwell); 6M Cache
  • VGA Technology: on-board; NVIDIA GeForce GTX 980M (4GB DDR5) or GTX 970M (3GB DDR5)
  • Mechanical (Frame): Aluminium Alloy (back cover and bottom case) combined with Heavy Duty ABS Plastic (front cover and top case)
  • Cooling: High performance, high quality copper VGA and CPU heatsinks to keep your system running cool.
  • Memory: Four 204-pin SODIMM sockets; DDR3L-1600 or 1866; 1.35V; up to 32GB
  • Storage: up to 5TB of storage with 4 physical drives: 2x M.2 2280 SSD SATA3 6Gb/s (or 1x M.2 2280 PCIe 2x/4x SSD and 1x M.2 SATA3 SSD) and 2x HDD/SSD SATA3 6Gb/s and RAID 0/1
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Backlit full size keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3 x USB 3.0 (1x powered USB port, AC/DC); 1 x eSATA/USB3.0 Combo port; 2 x mini Display Port 1.2 (up to 3840x2160 @60Hz); 1 x HDMI output (up to 4096x2304 @24Hz); 1 x Headphone; 1 x Microphone-in; 1 x S/PDIF (digital); 1 x RJ-45 LAN; 1 x DC-in
  • Display Support: Supports up to 3 active internal and/or external displays
  • Operating Systems: Windows 10, 8.1 and 7; Linux Ubuntu
  • Security: Kensington Lock and Embedded TPM 2.0
  • Battery: 4cells Polymer; 60WH; up to 200 minutes in UMA mode
  • Weight: M5 Pro (15.6") 2.6kg / 5.72lbs; M7 Pro (17.3") 3.2kg / 7.04lbs w/ battery
  • Dimensions: WxDxH M5 Pro R2 (GTX 970M): 385x271x25mm / 15.16x10.66x0.99-inch; M5 Pro R2 (GTX 980M): 385x271x28.8mm / 15.16x10.66x1.13-inch
  • ConfigureSpecificationsImagesVideosBrochurePrice ListComponentsUser ManualFAQsUpgradeUpgrade Price List
    EUROCOM M5 Pro Display Panel Upgrade Guide

    Date Created: Jul 22, 2015
    Created By: Eurocom

    The EUROCOM M5 Pro is a high performance laptop and it is extremely upgradeable. We have shown the upgradeable nature in other videos on our YouTube Channel. In this video we are showing the easy upgrade process for the display panel.
