Alienware M17x R3
17.3-inch FHD Display

Alienware M17x R3 (Early 2011)

  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: socket based 3rd generation Intel CPU (up to 2960XM)
  • AC Adapter: 180W standard for 75W GPUs; 240W is required for 100W GPUs
  • VGA Heatsink: standard 2-pipe (75W); 3-pipe (100W) is required for 100W GPUs
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required: A12 (unlocked)

    NONE OF THE VIDEO CARDS LISTED WILL SUPPORT 3D ON BOARD
    A 120HZ LCD PANEL IS SUPPORTED BUT IT WILL NOT DISPLAY 3D IMAGES






  • ImagesVideosReviewsComponentsDriversFAQsUpgradeUpgrade Price List
    Currency:

    Base Configuration
      GPU / VGA Upgrade Kit (Primary)
      - NVIDIA GeForce GTX 680M; 2GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste  [$658]
      - NVIDIA GeForce GTX 780M; 4GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste  [$742]
      - NVIDIA GeForce GTX 770M; 3GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste  [$598]
      - NVIDIA GeForce GTX 880M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste  [$658]
      VGA Heatsink (Primary)
      - Alienware M17x R3/4 Primary VGA Heatsink, 3-pipe; 100W; P/N: 0J9H7X  [$121]
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b for AMD Cards with Matching Screws  [$41]
      - GPU Spreader / X-Bracket for MXM 3.0b NVIDIA GTX and Quadro with Matching Screws  [$41]
      Extra Thermal Pads

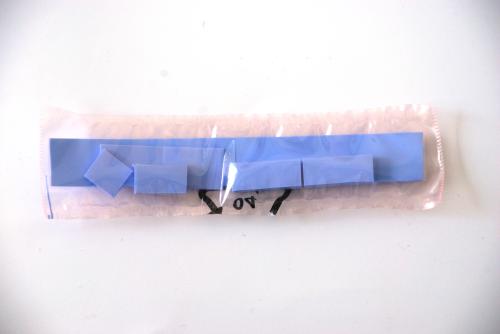

      - GPU/VGA Thermal Pad Kit for NVIDIA based MXM 3.0b cards   [$21]
      Extra Screws for X-Bracket
      - VGA/GPU X-Bracket / GPU Supporter Screws  [$8]
      Thermal Paste
      - IC Diamond Thermal Paste 7  [$21]
      Services
      - VGA Installation Service - Includes shipping both ways, install of VGA, Drivers, BIOS and Heatsink Mod if required  [$195]

    Options
      MXM3 GPU Riser Card- Riser cards are designed for testing and/or debugging MXM3 based GPUs
      - AMD MXM3 to PCIe Riser card   [$399]
      - NVIDIA MXM3 to PCIe Riser card   [$399]
      GPU / VGA Fan
      - Alienware M17x Primary Fan - P/N: is 04K1MM  [$54]

    Accessories

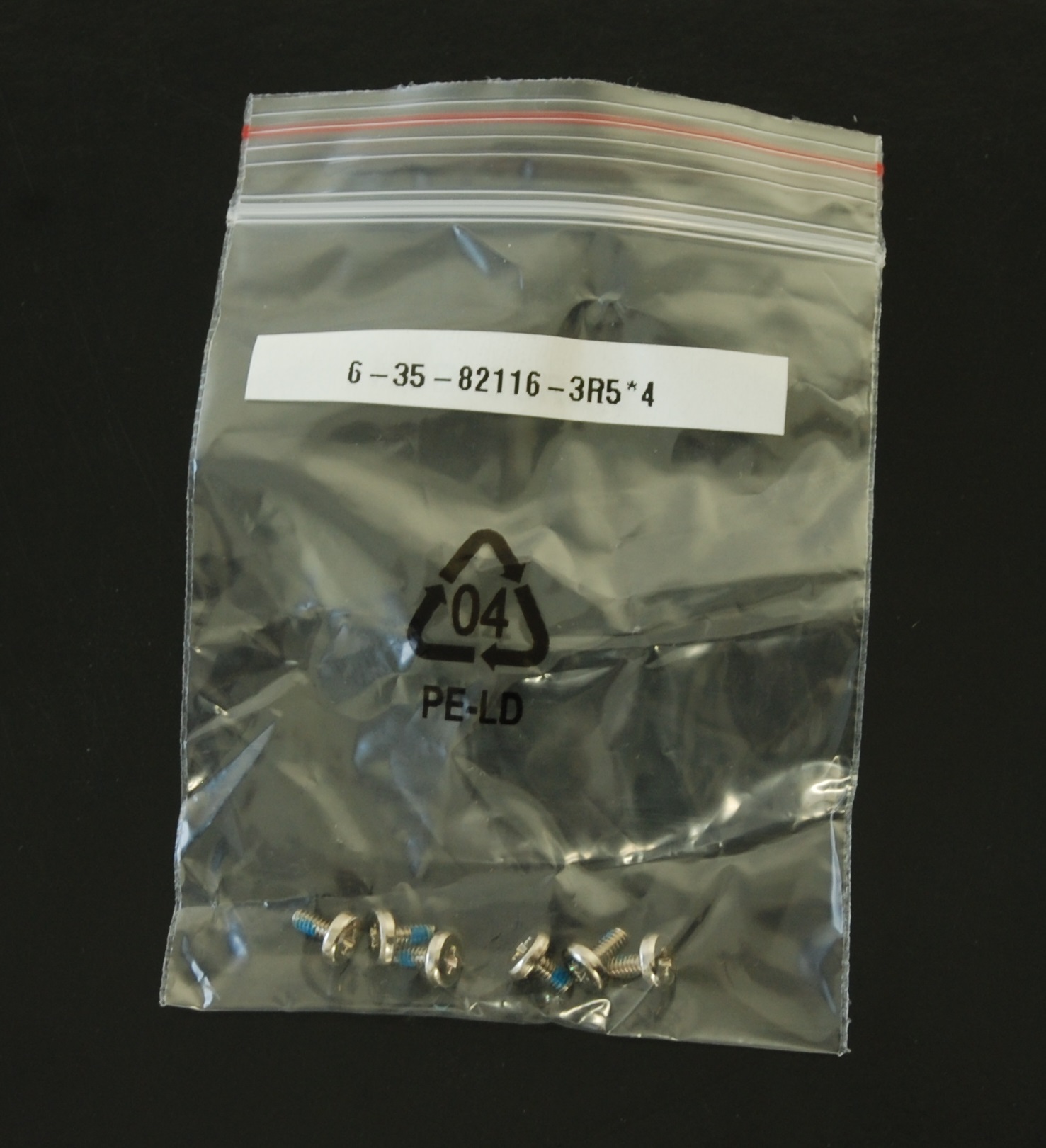

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific  [$41]
