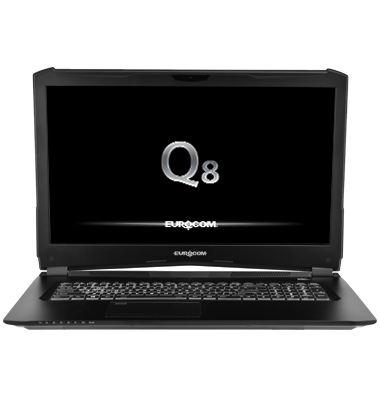

EUROCOM Q8
17.3in FHD 60Hz, 120Hz, 144Hz; QHD 120Hz; UHD 60Hz

  • Processor: on-board; Intel Core i9-8950HK (6cores/12threads); HM370 Coffee Lake
  • VGA Technology: on-board; NVIDIA GeForce GTX 1070 (8GB DDR5); Microsoft Hybrid Graphics mode
  • Display Technology: supports total 4 active displays; supports NVIDIA Surround View via HDMI x1 and miniDP x2.
  • Mechanical: Heavy duty metal (Aluminium Alloy) design (back cover/top case / bottom case).
  • Cooling: High performance, high quality copper GPU and CPU heatsinks to keep your system running cool.
  • Memory: Two 260-pin SODIMM sockets; DDR4-2400/2666/3000; 1.2V; up to 64GB
  • Storage: up to 12TB of storage with 3 physical drives: 2x M.2 SSD SATA3 / NVMe PCIe x4 and 1x HDD/SSD SATA3; RAID 0/1
  • Keyboard: RGB colour backlit per key; full size keyboard
  • Communications: 1GbE LAN; WLAN (M.2)
  • Sound System: SoundBlasterX Pro Gaming 720; 2x built in 2W speakers and 1x 4W subwoofer
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Ports: 1x Thunderbolt3 (USB 3.1 type C); 2x USB 3.1 type A; 2x USB 3.0 (1x powered); 2 x mini Display Port 1.3; 1 x HDMI 2.0 output; 1x 2-in-1 Audio Jack (Headphone + S/PDIF output); 1 x Microphone-in; 1 x RJ-45 LAN; 1 x DC-in
  • Operating Systems: Windows 10
  • Security: Kensington Lock, Fingerprint and Embedded TPM 2.0 Encryption
  • Battery: 4cells Lithium Polymer; 66WH; up to 340 minutes in UMA mode
  • Weight: 3kg / 6.6lbs
  • Dimensions: WxDxH: 418x287x24.9mm / 16.7x11.5x1inch
  •
    CustomizeSpecificationsImagesBrochureBenchmarksPrice ListComponentsUser ManualDriversUpgradeUpgrade Price List
    Launch Date:June 10, 2018
    Special Feature(s):NVIDIA GTX 1070 with 8GB DDR5 and G-Sync support
    4 Active Displays
    Aluminium Alloy Body
    Main Chipset:Intel HM370 Express Chipset
    Processor:Intel Mobile i9-8950HK; 6C/12T
    Coffee Lake (14nm); onboard
    Video / GPU:GPU-onboard (SMT)
    NVDIA GeForce GTX 1070; 8GB DDR5
    MUX design (switchable between dGPU and iGPU)
    Optional G-Sync support
    Built-in PC Camera:Built-in 2M FHD Webcam
    LCD Size:17.3in / 43.9cm
    LCD Specifications:17.3in eDP; FHD; UHD
    supports up to 4 active internal and/or external displays
    supports NVIDIA Surrond View (HDMI 2.0 + miniDP 1.2)
    Memory:Two 204-pin SODIMM sockets
    DDR4-2400/2666, 1.2V, 260pin
    up to 64GB
    Total Storage:up to 3 physical drives:
    - 2x M.2 SSD SATA3/NVMe + 1x 2.5in SSD/HDD
    Optical Drive:External USB
    DVD-RW or Blu Ray Burner
    Card Reader:6-in-1 Push-Push Card Reader
    MMC/RSMMC
    SD/mini SD/SDHC/SDXC
    Audio Architecture:High Definition Audio
    S/PDIF Digital Output
    Built in array microphone
    Built in two 2W speakers
    Sound Blaster X-FI MB5
    External 5.1CH output (headphone, mic and S/PDIF)
    ANSP 3D Sound Technology (headphone output)
    LAN/WLAN/Bluetooth:- 1GbE LAN; Realtek RTL8111G
    - WLAN/Bluetooth via M.2 2230 slot
    Security:Kensington Lock
    Fingerprint
    TPM 2.0 on-board (Infineon SLB9665 TCG)
    Internal cards / # of slots/Type:Three M.2 card slots
    -1st for WLAN M.2 2230 Card with PCIe x2 and USB interface
    -2nd for SSD M.2 2280 Card with SATA / PCIe x2/x4 SSD NVMe
    -3rd for SSD M.2 2280 Card with SATA / PCIe x2/x4 SSD NVMe
    I/O Ports:4 x USB 3.0 (1x powered USB port, AC/DC)
    2 x mini Display Port 1.2
    1 x HDMI output
    1 x Headphone
    1 x Microphone-in
    1 x S/PDIF (digital)
    1 x RJ-45 LAN
    1 x DC-in
    Internal Keyboard:Backlit full size keyboard 7-colours with separate numeric pad
    TouchPad with multi-gesture and scrolling (Synaptics TM-01474-003)
    W/A/S/D Gaming key
    AC Adapter:200W 100-240V 50-60Hz Auto-switching (worldwide)
    DC Output 19.5V, 10.5A
    Battery:4cells Polymer; 60WH; internal
    up to 200 minutes in UMA mode
    Weight:3kg / 6.6lbs
    Dimensions WxDxH:418x287x24.9mm / 16.7x11.5x1.0in
    Thickness:1.0in / 24.9mm
    Shipping / Packaging L xWx H / N.W. / G.W.:588*124*394mm / 5.04kg G.W
