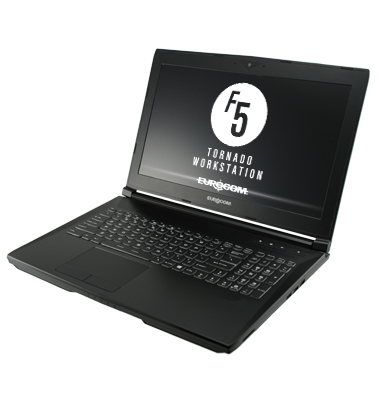

EUROCOM Tornado F5W
15.6" (39.62cm); FHD 1920-by-1080 pixels; IPS; eDP; LCD panel

  • Heavy Duty Mechanical Design Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  • Weight: 2.92kg / 6.45 lbs w/ battery
  • Chipset: Intel C236 (Xeon based) or Z170 (i7 based)
  • Processor: XEON E3-1200 V5/V6 series; socket based; LGA1151; up to 91W TDP
  • LAN Adapter: 1GbE on board; Qualcomm/Atheros E2500
  • Memory: up to 64GB; four 260-pin SODIMM sockets; DDR4-2133/2400/3000/3200
  • Storage: up to 8TB of storage with 3 physical drives: 2x M.2 PCIe x2/x4 (NVMe) or SATA SSD and 1x HDD/SSD (9.5mm) SATA3 6Gb/s
  • RAID Technology: RAID 0/1 with 2x NVMe SSDs
  • VGA Technology: upgradeable MXM 3.0; NVIDIA Quadro: M1000M, M3000M, M4000M, M5000M or P5000; up to 150W TDP; discrete GPU only (no Optimus)
  • Display Support: up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz
  • Card Reader: 6-in-1: UHS-II interface; MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Anti-ghosting backlit multi-colour 7-colour keyboard with seperate numeric keypad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3x USB 3.0; 1x USB 3.1 type C (Thunderbolt 3); 1x miniDP 1.2; 1x HDMI 2.0; 1x Headphone; 1x Microphone-in; 1x S/PDIF (digital); 1x Line-in; 1x RJ-45 LAN; 1x DC-in
  • Audio: High Definition Audio; S/PDIF Digital Output; Built in microphone; Built in two 2W speakers; Sound Blaster X-FI MB3; External 7.1CH output (headphone, mic, line-in and S/PDIF).
  • Display Support: up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz
  • Battery: 8cells; 14.4V 5225mAh/75.24Wh Li-Ion; up to 130 minutes
  • Dimensions: 390x266x39.8mm / 15.6x10.64x1.59-inch
  •
    ConfigureSpecificationsImagesBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    Nov 17, 2017

    Tornado F5W: Zero compromises…

    .... Today we evaluate the Tornado F5W, a high-end workstation from Eurocom. Considering that it’s decked out with an Intel Xeon E3-1280 v5 desktop CPU and NVIDIA Quadro P5000 GPU along with an NVMe SSD and 64 GB of RAM, are there any weaknesses to speak of? If so, we’ll find them.
    Jul 01, 2017

    The Eurocom Tornado F5W Workstation Storms Ahead of the Field

    Eurocom has once again proven that it can deliver some powerful mobile systems. The Canadian company recently sent us its Tornado F5W, a customizable and upgradable 15.6-in. laptop. Like the company’s Sky DLX7 system we reviewed last year (DE, October 2016), the Eurocom Tornado F5W includes a LGA1151 socketed CPU, enabling the system to support a wide range of Intel Xeon CPUs.
