|Jul 08, 2015

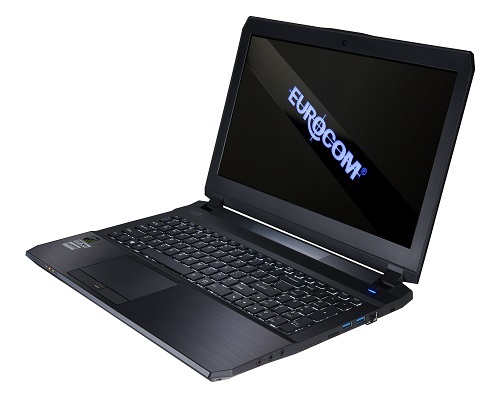

Eurocom brings upgradeability to new levels with 4 different 15.6” displays, FHD Matte, FHD GT, 4K Sharp GT and 4K Sharp Matte in its M5 Pro High Performance Gaming Laptop
Eurocom is adding multiple levels of display panel upgradeability to the M5 Pro high performance gaming laptop so customers get the display beauty they expect from a premium, custom system. Professional Display Calibration is offered to ensure the colours of a customer’s chosen display is as accurate and true to life as possible. When dealing with 8 million pixels, accuracy of those pixels is very important.
At Eurocom, choice and upgradeability are paramount for our customers. They demand the best and they demand the ability to choose between varieties of high quality, high performance components. Customers can now choose between two 1920x1080 panels in the AUO B156HAN01.2 matte, LG LP156WF4-SPU1 Glossy and two 4K panels in the SHARP IGZO LQ156D1JX01B Glossy and SHARP IGZO LQ156D1JW04 matte panels.
The EUROCOM M5 Pro has an Intel HM87 Express Chipset running the Intel Core i7-4710HQ processor with 4 cores, 8 threads running at 2.5 GHz with integrated Intel® HD Graphics 4600. Due to Hyperthreading, the four cores can handle up to eight threads in parallel leading to better overall utilization of the CPU. The i7-4710HQ is rated at a TDP of 47 W including graphics card and memory controller. The Intel Core i7-4720HQ and Intel Core i7-4870HQ are also offered, to provide customers with the processor they need for their requirements.
The EUROCOM M5 Pro supports beautiful 15.6-inch 4K 3840-by-2160 displays as well as a FHD 1920-by-1080 displays. The high pixel density of the 4K display with 8,294,400 pixels provides extremely detailed images for true to life content. Eurocom also offers professional colour calibration services to ensure every one of those 8 million pixels are accurate as possible. To power this multitude of pixels the EUROCOM M5 pro supports both NVIDIA GeForce GTX 980M (4GB DDR5), GTX 970M (3GB DDR5) and 965M (2 GB GDDR5) graphics for unbeatable performance, raw power and great battery life.
The EUROCOM M5 Pro comes with a full size backlit keyboard with separate numeric keypad. The adjustable white backlit keys help to increase usability in dim lighting conditions by ensuring users can see the keyboard in nearly any environment, while also hinting at the epic power under the hood.
The EUROCOM M5 Pro has 4 memory slots ready for up to 32 GB of dual channel DDR3 1600MHz or 1866 MHz 204 pin SODIMM. With such massive amounts of RAM available, the M5 Pro becomes a flexible tool for virtualization and high performance computing. Being fully upgradeable the EUROCOM M5 Pro supports 8 GB, 16 GB, 24 GB and 32 GB of memory via 4 or 8 GB modules.
The EUROCOM M5 Pro has two M.2 2280 SSD, SATA interface (RAID 0/1) or One M.2 2280 SSD PCIe Gen2 x2/x4 interface, as well as two changeable 2.5” 7mm(H) HDD/SSD (RAID 0/1), or One changeable 2.5” 9.5mm(H) HDD/SSD, SATA interface. The abundance of storage options gives customers an incredible amount of control over their storage capacity, speed and price.
The M5 Pro is prewired for 3G/4G/LTE module support, through an M.2 slot, so users can have a reliable internet connection on the go for mobile gaming or professional use.
EUROCOM M5 Pro Display Options:
- AUO B156HAN01.2, FHD 1920x1080; AH-IPS; MATTE (Non-Glare); 700:1; NTSC 72%; Backlight WLED; eDP;
- LG LP156WF4-SPU1, FHD 1920x1080; AH-IPS; GLOSSY (Glare Type); 700:1; NTSC 72%; Backlight WLED; eDP;
- SHARP IGZO LQ156D1JX01B, 4K QFHD 3840x2160; Retina / IPS; Glossy; 1000:1; NTSC 72%; sRGB 100%; Backlight WLED; eDP;
- SHARP IGZO LQ156D1JW04, 4K QFHD 3840x2160; MATTE IPS; 1000:1; NTSC 72%; sRGB 100%; Backlight LED; eDP;
EUROCOM M5 Pro Specifications:
Display: Beautiful 15.6-inch 4K QFHD IPS 3840-by-2160, 3K WQHD+ IPS 2880-by-1620 or 2K FHD IPS 1920-by-1080 pixels; 60Hz; eDP interface; LED Backlit; Retina
Processor: on-board; Intel Core i7-4710HQ; 6M Cache; up to 3.50 GHz; integrated HD 4600 GPU
VGA Technology: on-board; NVIDIA GeForce GTX 980M (4GB DDR5); GTX 970M (3GB DDR5) or GTX 965M (2GB DDR5)
Mechanical (Frame): Aluminium Alloy (back cover and bottom case) combined with Heavy Duty ABS Plastic (front cover and top case)
Cooling: High performance, high quality copper VGA and CPU heatsinks to keep your system running cool.
Memory: Four 204-pin SODIMM sockets; DDR3L-1600 or 1866; 1.35V; up to 32GB
Storage: up to 4 physical drives: 2x M.2 2280 SSD SATA3 6Gb/s (or 1x M.2 2280 PCIe 2x/4x SSD and 1x M.2 SATA3 SSD) and 2x HDD/SSD SATA3 6Gb/s and with Intel Rapid Start Technology; Intel Smart Response Technology and RAID 0/1
Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
Keyboard and Touchpad: Backlit full size keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
Ports: 3 x USB 3.0 (1x powered USB port, AC/DC); 1 x eSATA/USB3.0 Combo port; 2 x mini Display Port 1.2 (up to 3840x2160 @60Hz); 1 x HDMI output (up to 4096x2304 @24Hz); 1 x Headphone; 1 x Microphone-in; 1 x S/PDIF (digital); 1 x RJ-45 LAN; 1 x DC-in
Display Support: Supports up to 3 active internal and/or external displays
Security: Kensington Lock and Embedded TPM 2.0
Battery: 4cells Polymer; 60WH; up to 200 minutes in UMA mode
Weight: M5 Pro (15.6") 2.6kg / 5.72lbs; M7 Pro (17.3") 3.2kg / 7.04lbs w/ battery
Dimensions: WxDxH M5 Pro (GTX 970M): 385x271x25mm / 15.16x10.66x0.99-inch; M5 Pro (GTX 980M): 385x271x28.8mm / 15.16x10.66x1.13-inch;
Eurocom is a leading developer and innovator of long lifespan, fully upgradable notebooks, high performance mobile workstations and mobile servers since 1989. Eurocom has produced many firsts and continues to engineer solutions that inspire and enable individuals and companies to reach great possibilities. For more information on Eurocom please visit www.eurocom.com.
